My tunnels of Havana !!!

It’s not easy to find pictures that are in several modes from paper to usb , vhs videos to cd roms but finally got to these ones. I like to have it in my blog and hope you enjoy it as much as I. This is going back deep back in my life when as a boy lived in Havana or La Habana or San Cristobal de la Habana! I remembered walking a lot around the main points there and was able to visit again as recently as 2012 to see it more dilipated than ever ; like if I really was born here ? I like to tell you my story from old books and brochures of my Havana on the Tunnels of Havana. Memories forever ! Hope you enjoy it as I.

For years, communications between the urban center of Havana and the west of the city were established by crossing the Almendares River through the existing bridges: Puentes Grandes, built by the French engineer La Carriere de la Tour at the beginning of the 19C on the Almendares river in the neighborhood of ​​the Cerro. The Calle 23rd Bridge, in the first decade of the 20C; the iron one in the second decade, and the old Pote bridge, built in 1919 for the Miramar residential development, which was demolished to replace it with the Tunel de Calzada tunnel, also known as the Tunel de la Quinta tunnel, which crosses the Almendares River near the Torreón de la Chorrera through the place occupied by the old Pote Bridge, connecting 5ta Avenida (Fifth Avenue) in Miramar with Calle Calzada street and the Malecón in Havana.

The Tunel de Calzada or Quinta Avenida (5th avenue) has two caissons with a total length of 200 meters and a longitudinal slope of 6% on each side. It has 4 tracks (two in each direction) of 3.35 meters wide each, and a free height of 4.25 meters in the center. Like the other tunnels, 3 levels of lighting were planned in the entrance areas and in the central area to adjust them to the external light. The problem of evacuating rainwater was solved by means of a drainage system towards the sea by a main pumping installation with two self-starting pumps of 600 m3/h each. Four cisterns with a total capacity of 300 m3 ensured the water tank during heavy rains and would be used in case of fire. It is done below the Almendares river near its mouth.  The work, inaugurated on June 12, 1959, was carried out by the construction company Societé des Grands Travaux de Marseille (France).

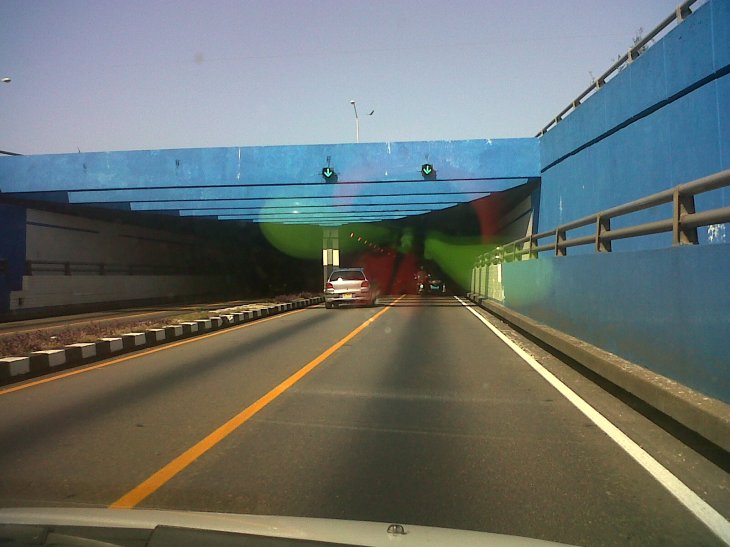

Havana tunnel quinta avenida apr12

The Tunel de Linea tunnel aka Almendares (my tunnel when a child taken to the city center) in the Vedado neighborhood built by Cuban engineers and builders with construction work starting in 1951 and ending in 1953. This one done with architect and construction company from Cuba. All the electromechanical equipment of the tunnel could be activated from the boards in the control booths. According to the original project, the 6 installed pumps could evacuate the flow of water coming from heavy rains. The Tunel de Linea or Almendares was the first, inaugurated in the middle of 1953. It is equipped with a lighting system that uses 880 cold cathode tubes of 8 feet each, and the lighting is graduated by means of a photoelectric cell according to the brightness of the day. The tunnel light is more intense at the entrance than at the exit, which prevents sudden changes in vision. The ventilation system is served by four air extractors of 75,000 cubic feet each, and all four work automatically through a carbon monoxide analyzer that acts according to the accumulation of this gas inside the tunnel. Three cisterns collect rainwater from the tunnel approaches, water that is drained by six bilge pumps, two for each cistern, capable of discharging 3,000 gallons per minute. The tunnel has a total width of 16.85 meters, with two drainage ways. 6.57 meters each one and two paths each way, divided by a resounding separator that indicates to the driver when the vehicle is diverted. The ventilation gallery, 1.70 meters wide, in the center, separates the two tracks and divides the tunnel into two equal halves. The height is 4.30 meters. The thickness of the floor plate measures 3.35 meters, and the river runs 1.50 meters above the roof level. The length of the tunnel in its covered part is 216 meters, and the two ramps that give access to the tunnel on both sides measure 306.40, thus, the work has a total of 522.40 meters.

The Tunel de la Bahía (bay tunnel) with entrance also through the Ave. del Puerto. the preliminary works of the future tunnel to the North American firm Raymon Concrete Pile Company, which is associated with the designers Palmer and Baker, Inc., and with Coverdale and Colpitt that would be in charge of carrying out the traffic census , Then, came a French company, which not only presents a project, but also offers the financing and the budget for the works. The project was awarded to the French company, the Societé des Grands Travaux de Marseille (France); the on-site inspection was carried out by the Frederick Snare Corporation and the higher management by the National Development Commission of Cuba, According to the approved project, the central zone of the tunnel is made up of five sections or prefabricated concrete boxes, four of which which have a length of 107.50 meters and a central box of 90 meters. The layout of this tunnel runs under the bottom of the Bay of Havana, between 12 and 14 meters. The drainage system was made taking advantage of the topographical characteristics where drains collect rainwater and take it to the sea. In addition to this, two tanks with a capacity of 500 m3 each were built for the accumulation of rainwater. Water is extracted from the cisterns with six pumping equipment of 2,200 g/m each, two on the Havana city side and four on the Cabaña fortress side. The tunnel allows the passage of four traffic lanes, each 3.35 meters wide. and it is 733 meters long and a total length of the connection work of more than 1,600 meters, which also includes the West (Havana) and East (Toll Zone) accesses. A telephone line with an automatic exchange of 28 pairs linked different places in the tunnel with 7 telephones installed in series within it.

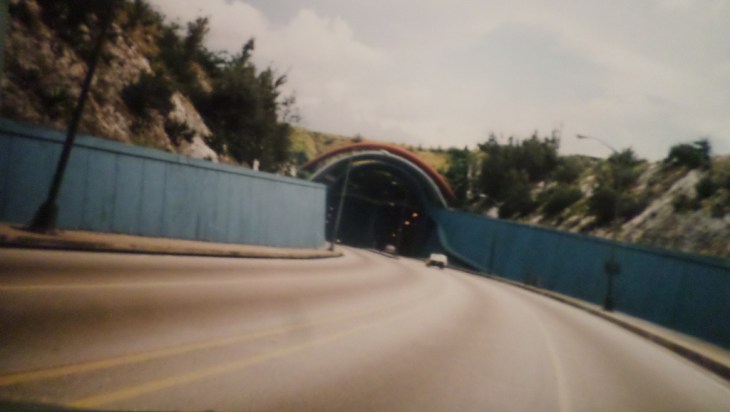

havana tunnel de la bahia under the bay aug98

There is no specific webpage for the Tunnels of Havana, but the info above taken from my old books/brochures of my Tunnels of Havana. The pictures taken from paper pictures that I took in my last trip there in 2012. Again, hope you enjoy the post and see my other posts on Havana in my blog.

And remember, happy travels, good health, and many cheers to all !!!
